MIPS 32 Example Program using QtSPIM

A few nights ago, I got my first MIPS 32 program running in QtSPIM. Readers of this blog will recall my recent posts about MIPS-32 assembly language and the MIPS-32 SPIM emulator. I promised you a sample program and operational details - so here they are. Below is the code listing:

# http://inkarlslab.blogspot.com
# 09/16/2011
#
# A Demonstration of some simple MIPS instructions
# used to test QtSPIM.
#
#
#
# ori rt, rs, imm - Puts the bitwise OR of register rs and the
# zero-extended immediate into register rt => This is a
# trick for placing a constant into register rt.
#
# add rd, rs, rt - Puts the sum of registers rs and rt into register rd.
#
# sub rd, rs, rt - Puts difference of registers rs and rt into register rd.
#
# syscall - Register $v0 contains the number of the system
# call provided by QtSPIM - when $v0 is loaded with the value '10',
# this causes program to exit.
#
# It calculates 25 + 12, and 25 - 12.
#


.globl main # Make main global so you can refer to
# it by name in QtSPIM.

.text # This line tells the computer this is the
# text section of the program
# (No data contained here).

main: # Program actually starts here.
ori $t2, $0, 25 # Register $t2 gets 25
ori $t3, $0, 12 # Register $t3 gets 12
add $t4, $t2, $t3 # Register $t3 gets 25 + 12

sub $t5, $t2, $t3 # Register $t5 gets 25 - 12

ori $v0, $0, 10 # Sets $v0 to "10" so when syscall is executed, program will exit.
syscall # Exit.


This program loads constant values into two temporary registers $t2 and $t3, using the ori command.

Here is a handy list of MIPS-32 commands:
http://www.mrc.uidaho.edu/mrc/people/jff/digital/MIPSir.html

The MIPS-32 Register file contains 32 registers - each is 32 bits long. Here is a list of them and how they're used:
http://msdn.microsoft.com/en-us/library/ms253512%28v=vs.80%29.aspx

Now, back to the code:
The contents in $t2 and $t3 are added and that value gets stored in another register, $t4. Then the contents of $t3 are subtracted from the contents of $t2, then stored in $t5. After all the work is done, register $v0 is set to "10", which is the code for "EXIT". Then the program exits.

Here, in a nutshell, is how to quickly write a MIPS-32 program and run it in QtSPIM:

1) Write your program in a similar style as I have above. You can do this in any text editor. Save the file as YOUR_FILENAME.asm .

2) Start QtSPIM. Under the "simulator" menu, select "clear registers". You should see some values "zero out" in the "register window" along the left-hand side of the QtSPIM panel.

3) Under the "File" menu, select "load file". A file browser window will pop up - locate your .asm file and select it. The program should load into QtSPIM.

4) Under the "Simulator" menu, select "Run Parameters". Enter "0x00400024" - without the quotation marks, into the box entitled "address or label to start running program". This simply tells QtSPIM which line your code starts on, since there is other initialization code that appears whenever you start QtSPIM. That code ends with a syscall at address 0x00400020.

5) Under the "Registers" menu, select "decimal". This will display the values in your register as normal base 10 (decimal) numbers, which helps us to easily verify that the math is being done according to design.

6) Using the single-step button seen in the second picture below, step through the program. You can also use "F10" on your keyboard - you may find this more convenient. Each time you click the button, note what happens to the values in each of the registers in the left hand window, as well as the program counter.

Note, too, that both the program counter and the register address increments by 4; this makes sense because a MIPS-32 register is 32 bits, or 4 bytes, long. Gotta love it when real-world experience actually matches what's in the book :)

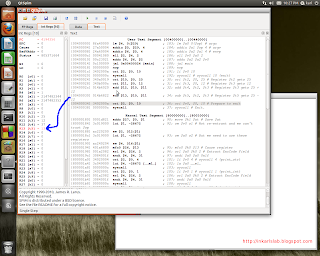

The sequence of pictures below show the program as I stepped through it.

Ready, get set ...

























Now, we start stepping through the program:


















As we step, the "ori" instructions load constants into the registers in preparation for some simple math.

Addition completed:



















Now, the subtraction just completed:



















Program finished running:


I would like to add that the creator of SPIM, Jim Larus, was of great help in answering my questions and emails during the installation of QtSPIM on my Fedora box. Mr. Larus is a true gentleman and has created a really cool and useful application - and I wanted to voice my appreciation for his efforts here.

Friday, September 9, 2011

SPIM In a LINUX Environment

In my last post I discussed MIPS 32 and the SPIM emulator for running MIPS 32 assembly code on your PC. Today I will briefly talk about how I got SPIM running in a LINUX environment. My earlier post is located at http://inkarlslab.blogspot.com/2011/09/spim-mips-32-bit-simulator.html

The problem I was having yesterday was in compiling SPIM on a Fedora system. I was getting this error message when running the makefile:

make: *** No rule to make target `../CPU/spim.h', needed by `spim.o'. Stop.

All the files were there and apparently in their proper folders, ...

I am still in communication with someone in attempt to get that figured out. The person helping me suggested I try installing the pre-compiled Debian binary. So I downloaded the 32-bit Debian file for QtSPIM from the following link:

SPIM MIPS Simulator Homepage - You can find more information and LINUX versions by going here.
http://spimsimulator.sourceforge.net/

I next unpacked it with the GNOME "File Roller" tool and extracted everything to the "SPIM" directory I had created earlier. Basically that's it. There are two ways to run QtSPIM from this installation.
Suppose you installed your "SPIM" directory in your home directory:

1) On the command line, simply navigate to the "SPIM" directory, then to "/usr", then to "/bin". NOTE that these /usr and /bin directories are NOT the same ones as are in your UNIX file system! Once you are in /bin, type qtspim to start the application, or

2) locate the SPIM/usr/bin folder via the GNOME desktop and click on the QtSPIM executable.



As you can see, QtSPIM is now running on a Fedora system. Having never tried to install a Debian executable on Fedora, I thought this was pretty cool.
